E Cores E305 thru E610

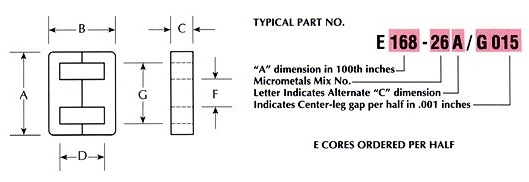

--- MAGNETIC DIMENSIONS Micrometals Part No. (Bobbin) AL nH/N2 (Ref.Size) A in/mm B in/mm C in/mm D in/mm F in/mm G in/mm cm A cm2 V cm3 W cm2 E305-2 75.0 3.051/77.5 3.051/77.5 .933/23.7 2.118/53.8 .933/23.7 2.118/53.8 18.5 5.62 104 8.10 E305-8 156.0 E305-18 222.0 E305-26 287.0 E305-30 124.0 E305-34 150.0 E305-40 255.0 E305-52 287.0 (PB305 or PB305/V0)   E305-26/G050 165.0 3.051/77.5 -- 3.051/77.5 .933/23.7 2.118/53.8 .933/23.7 2.118/53.8 18.5 5.62 104 8.10 E305-52/G050 165.0 Gapped E305 with center gap .100 in./2.54 mm per set   E305-8A 208.0 3.051/77.5 3.051/77.5 1.244/31.6 2.118/53.8 .933/23.7 2.118/53.8 18.5 7.49 139 8.10 E305-18A 280.0 E305-26A 382.0 E305-30A 165.0 E305-40A 339.0 E305-52A 382.0 (PB305A)   E305-26A/G050 219.0 3.051/77.5 3.051/77.5 1.244/31.6 2.118/53.8 .933/23.7 2.118/53.8 18.5 7.49 139 8.10 E305-52A/G050 219.0 Gapped E305A with center gap .100 in./2.54 mm per set   E315-52 190.0 3.150/80 3.000/76.2 0.780/19.8 2.221/56.4 0.780/19.8 2.370/60.2 19.3 3.92 75.6 11.4 E315-52A 238.0 0.974/24.75 4.90 94.5 E315-52B 285.0 1.169/29.7 5.88 113 E315-52C 325.0 1.362/34.6 6.85 132 E315-52D 370.0 1.559/39.6 7.84 151   E450-2 132.0 4.500/114 3.636/92.4 1.375/34.9 2.250/57.2 1.375/34.9 3.120/79.3 22.9 12.2 280 12.7 E450-8 260.0 E450-18 400.0 E450-26 540.0 E450-30 235.0 E450-34 300.0 E450-40 480.0 E450-52 500.0 (PB450/V0) (US LAM EI-30)   E450-8H 140.0 4.500/114 3.636/92.4 .688/17.5 2.250/57.2 1.375/34.9 3.120/79.3 22.9 6.1 140 12.7 E450-18H 200.0 E450-52H 270.0 (PB450/V0 for double stack)   E610-2 163.0 6.102/155.0 6.102/155.0 1.866/47.4 4.236/108 1.866/47.4 4.236/108 37.0 22.5 832 32.4 E610-26 588.0 E610-34 314.0   E827-2 175.0 8.268/210 9.843/250 2.520/64 7.323/186 2.520/64 5.748/146 58.2 41.0 2384 76.26 E827-26 620.0 E827-30 280.0 E827-34 378.0 E827-35 378.0
