E Core Bobbins

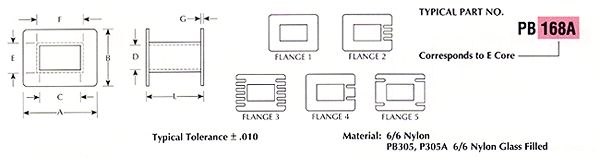

Bobbin Notes: All bobbins
are composed of 6/6 Nylon material except PB305, PB305A and any
bobbin with the suffix "/VO". The PB305 and PB305A are composed of
6/6 Nylon Glass Filled. The "/VO" indicates a material that is rated
for UL 94 VO flame class. Micrometals also offers bobbins for the
following metric and custom E-core sizes for sample and small
quantity orders; E80, E99. Their part numbers are, respectively,
PB80, and PB99.
MICROMETALS
Part No.
|
A
in/mm
|
B
in/mm
|
C
in/mm
|
D
in/mm
|
L
in/mm
|
E
in/mm
|
F
in/mm
|
G
in/mm
|
Flange
No.
|
PB49
|
.360/9.14
|
.360/9.14
|
.130/3.30
|
.130/3.30
|
.307/7.80
|
.160/4.06
|
.160/4.06
|
.020/.508
|
1
|
PB75
|
.535/13.6
|
.535/13.6
|
.205/5.21
|
.205/5.21
|
.420/10.7
|
.250/6.35
|
.250/6.35
|
.025/.635
|
1
|
PB1OOE
|
.740/18.8
|
.740/18.8
|
.265/6.73
|
.265/6.73
|
.475/12.1
|
.305/7.75
|
.305/7.75
|
.035/.889
|
1
|
PB137
|
.865/22.0
|
.865/22.0
|
.385/9.78
|
.385/9.78
|
.680/17.3
|
.445/11.3
|
.445/11.3
|
.032/.813
|
1
|
-
|
PB162
|
1.100/27.9
|
1.100/27.9
|
.510/13.0
|
.510/13.0
|
.796/20.2
|
.575/14.6
|
.575/14.6
|
.032/.813
|
1
|
PB168
|
1.370/34.8
|
1.165/29.9
|
.640/16.3
|
.490/12.4
|
1.150/29.2
|
.570/14.5
|
.720/18.3
|
.060/1.52
|
2
|
PB168A
|
1.465/37.2
|
1.157/29.4
|
.799/20.3
|
.492/12.5
|
1.142/29.0
|
.570/14.5
|
.880/22.4
|
.060/1.52
|
3
|
PB187
|
1.215/30.9
|
1.225/31.1
|
.645/16.4
|
.645/16.4
|
.925/23.5
|
.715/18.2
|
.715/18.2
|
.025/.635
|
4
|
-
|
PB220
|
1
640/41.7
|
1.425/36.2
|
.840/21.3
|
.680/17.3
|
1.440/36.6
|
.760/19.3
|
.920/23.4
|
.060/1.52
|
2
|
PB225
|
1
480/37.6
|
1.480/37.6
|
.765/19.4
|
.765/19.4
|
1.115/28.3
|
.845/21.5
|
.845/21.5
|
.035/.889
|
5
|
PB305
|
2.020/51.3
|
2.020/51.3
|
.965/24.5
|
.965/24.5
|
2.040/51.8
|
1.055/26.8
|
1.055/26.8
|
.060/1.52
|
2
|
PB305/V0
|
2.020/51.3
|
2.020/51.3
|
.965/24.5
|
.965/24.5
|
2.040/51.8
|
1.055/26.8
|
1.055/26.8
|
.060/1.52
|
2
|
-
|
PB305A
|
2.330/59.2
|
2.020/51.3
|
1.275/32.4
|
.965/24.5
|
2.040/51.8
|
1.055/26.8
|
1.365/34.7
|
.060/1.52
|
2
|
PB450/V0
|
3.050/77.5
|
3.050/77.5
|
1.412/35.9
|
1.412/35.9
|
2.200/55.9
|
1.544/39.2
|
1.544/39.2
|
.066/1.68
|
1
|
|
