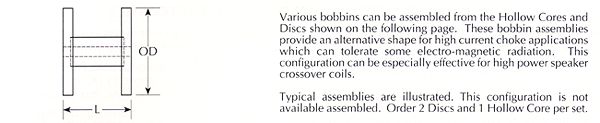

Bobbin Assemblies

DISC Part No. HOLLOW Core Part No. AL* nH/N2 OD in/mm L in/mm Window cm2 D45-1040 H811-1140 85 1.420/36.1 .937/23.8 1.84 D45-1040 H817-1140 60 1.420/36.1 1.312/33.3 2.95 D59-1040 H1015-1040 100 1.845/46.9 1.250/31.8 3.43 D59-1040 H1021-1040 80 1.845/46.9 1.625/41.3 4.90 D80-2040 H1217-1040 130 2.500/63.5 1.375/34.9 5.66 D80-2040 H1225-1040 95 2.500/63.5 1.875/47.6 8.49 - *AL value listed is approximate and is for indication only
