| MICROMETALS Part No. |

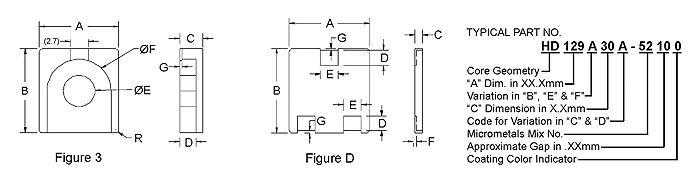

Figure
|
A
mm |
B
mm |
C
mm |
D
mm |
E
mm |
F
mm |
G
mm |
|
± 0.20
|
± 0.20
|
± 0.15
|
± 0.15
|
± 0.10
|
± 0.15
|
ref
|
||
| HD102A30A-52000 |
3
|
10.2
|
10.2
|
3
|
2
|
4
|
8.2
|
0.55
|
| HD102A45A-52000 |
3
|
10.2
|
10.2
|
4.5
|
3.5
|
4
|
8.2
|
0.55
|
| HD102A69A-52000 |
3
|
10.2
|
10.2
|
6.9
|
5.6
|
4
|
8.2
|
0.55
|
|
|
± 0.20
|
± 0.20
|
± 0.10
|
ref
|
ref
|
ref
|
ref
|
|
| ID102A12G-520 |
D
|
10.2
|
10.2
|
1.2
|
3
|
2.8
|
0.35
|
0.35
|
| ID102A15G-520 |
D
|
10.2
|
10.2
|
1.5
|
3
|
2.8
|
0.35
|
0.35
|
|
|
± 0.25
|
± 0.25
|
± 0.15
|
± 0.15
|
± 0.10
|
± 0.15
|
ref
|
|
| HD119A36A-52000 |
3
|
11.9
|
12.7
|
3.55
|
2.55
|
4.7
|
9.6
|
|
| HD119A50A-52000 |
3
|
11.9
|
12.7
|
5
|
4
|
4.7
|
9.6
|
|
|
|
± 0.25
|
± 0.25
|
± 0.10
|
ref
|
ref
|
ref
|
ref
|
|
| ID119A11E-520 |
D
|
11.9
|
12.7
|
1.1
|
2.55
|
2.7
|
0.25
|
0.3
|
|
|
± 0.25
|
± 0.25
|
± 0.15
|
± 0.15
|
± 0.10
|
± 0.15
|
ref
|
|
| HD129A35A-52000 |
3
|
12.9
|
12.9
|
3.5
|
2.5
|
4.9
|
10.8
|
0.55
|
| HD129A50A-52000 |
3
|
12.9
|
12.9
|
5
|
4
|
4.9
|
10.8
|
0.55
|
| HD129A79A-52000 |
3
|
12.9
|
12.9
|
7.9
|
6.75
|
4.9
|
10.8
|
0.55
|
|
|
± 0.25
|
± 0.25
|
± 0.10
|
ref
|
ref
|
ref
|
ref
|
|
| ID129A12G-520 |
D
|
12.9
|
12.9
|
1.2
|
3
|
3
|
0.35
|
0.35
|
| ID129A15G-520 |
D
|
12.9
|
12.9
|
1.5
|
3
|
3
|
0.35
|
0.35
|
