Toroidal Cores T16-60 thru T80-70B

--

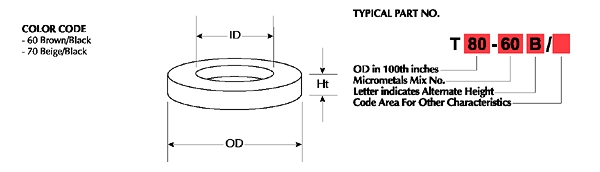

MAGNETIC DIMENSIONS
MICROMETALS
Part No.
AL
nH/N2
OD
in/mm
ID
in/mm
Ht
in/mm

cm
A
cm2
V
cm3

--

T20-60

13.0
.200/5.08
.088/2.24
.070/1.78
1.15
.023
.026

T20-63

7.8

T20-66

15.5

T20-70

22.5

--

T25-60

17.0
.255/6.48
.120/3.05
.096/2.44
1.50
.037
.055

T25-63

10.0

T25-66

20.0

T25-70

31.0

--

T30-60

22.0
.307/7.80
.151/3.84
.128/3.25
1.84
.060
.110

T30-63

14.0

T30-66

26.5

T30-70

40.5
T30-M125 52.0
T30-M125E 64.0
.310/7.87
.156/3.96
.156/3.96
1.84
.073
.134

--

T37-60

19.0
.375/9.53
.205/5.21
.128/3.25
2.31
.064
.147

T37-63

12.0

T37-66

22.5

T37-70

34.0

--

T38-60

36.0
.375/9.53
.175/4.45
.190/4.83
2.18
.114
.248

T38-63

22.5

T38-66

43.0

T38-70

65.0
T39-M125 53.3
.380/9.65
.188/4.78
.125/3.18
2.27
.072
.164

--

T40-66

31.5
.400/10.2
.200/5.08
.156/3.96
2.39
.096
.229

T40-M125

66.0

--

T44-60

25.5
.440/11.2
.229/5.82
.159/4.04
2.68
.099
.266

T44-63

16.0

T44-66

30.5

T44-70

46.5

--

T45-63B

18.0
.440/11.2
.250/6.35
.190/4.83
2.75
.135
.370

T45-66B

34.0

--
T45-M125C 53.0
.440/11.2
.250/6.35
.156/3.96
2.75
.091
.250

--

T50-60

24.0
.500/12.7
.303/7.70
.190/4.83
3.19
.112
.358
T50-63 15.5

T50-66

29.0

T50-70

44.0
T50-M125 56.0

--

T50-60B

32.0
.500/12.7
.303/7.70
.250/6.35
3.19
.148
.471

T50-63B

20.0

T50-66B

38.0

T50-70B

58.0

--

T50-63C

27.5
.500/12.7
.303/7.70
.335/8.51
3.19
.200
.637

T50-66C

51.0

--

T50-66D

57.0
.500/12.7
.303/7.70
.375/9.53
3.19
.223
.711

T50-70D

88.0

--

T60-60

34.5
.600/15.2
.336/8.53
.234/5.94
3.74
.187
.699

T60-63

21.5

T60-66

41.0

T60-70

62.0

--
T66-M125 72.0
.650/16.51
.400/10.16
.250/6.35
4.19
.192
.803

--

T68-60

29.0
.690/17.5
.370/9.40
.190/4.83
4.23
.179
.759

T68-63
18.5

T68-66
35.0

T68-70

53.0

--

T68-60A

39.5
.690/17.5
.370/9.40
.250/6.35
4.23
.242
1.03

T68-63A

25.0

T68-66A

47.0

T68-70A

71.0

--

T80-60

31.0
.795/20.2
.495/12.6
.250/6.35
5.14
.231
1.19
T80-63 19.5
T80-66 37.0

T80-70

56.0
T80-M125 68.0

--

T80-60B

46.5
.795/20.2
.495/12.6
.375/9.53
5.14
.347
1.78

T80-63B

29.0

T80-66B

55.0

T80-70B

84.0
