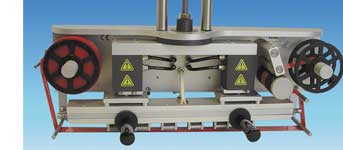

Kortho Hotprinter MLP
Special model Hotfoil printer: MLP (Multi-Lane-Printer). Prints between 2 and 12 packages with a maximum print area of 420 x 50 mm, a coding speed of 200/min and very suitable for printing small amounts of text on packaging film.
Such as the date and/or price coding, storage information (best before date), logos, brand marks and company marks, recycling symbol and EG symbol, in a packaging process with high production speeds.

Highlights of the Hotprinter MLP:

Prints on between 2 and 12 packagings, with a date or a production code for example, in one operation.
Ideal for text and logos.
Flexible text holder arrangement through combinations of separate numbers/letters and text blocks
Uses one single print foil roll.
Very economic usage of the printing foil thanks to the optimally adjustable foil transport.
The industrial design guarantees reliability under many different circumstances.
Low maintenance and operator-friendly
Print area: 420 x 50 mm

The Kortho Hotprinter MLP in a nutshell

The Kortho Hotprinter MLP (Multi-Lane-Printer) is a special model Hotfoil printer, that completes the existing line of standard printers from Kortho.
The MLP has been developed particularly for pouch filling machines that are used for packaging ketchup, shampoo, herbs, and many other products.
The MLP is also an ideal but yet simple and compact solution for applying a sharp print result on all products packed with horizontal vacuum forming packaging machines.

Specifications


Max. print area (in mm)
420 x 50

Max. coding speed (prints / min.)
200/min

Stamp pressure at 6 bar (N)
1,000

Max. Hotprint foil length (in mm)
305

Max. Hotprint foil width (in mm)
85

Printing temperature (degr. C)
80 -220

End of Hotprint alarm
Standard

Power supply voltage
230VAC ± 10% 50-60 Hz

Power connection (Watt)
2 x 250

Operating pressure (in bar)
6

Air usage (in litres per operation)
0.4 at 6 bar
Sound level (in dB)
80

Main dimensions (in mm) at max.
Hotprint foil transport, incl. counterpressure plate
L 610, W 170, H 213

Operating system
Kortho Hotprint switch cabinet

Hotprint foil norm
Non-toxic Hotprint foil

Industrial norms
CE-approved

With an eye on continuous development and improvement of our products, Kortho reserves the right to change the specification of the models without prior notice.
