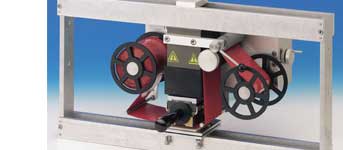

Kortho Hotprinter M-80
Kortho Hotprinter with a maximum print area of 50 x 80 mm, a coding speed of 300/min and very suitable for printing small amounts of text on packaging film.
Such as the date and/or price coding, storage information (best before date), logos, brand marks and company marks, recycling symbol and EG symbol, in a packaging process with high production speeds.

De Kortho Hotprinter M80: de highlights

Very suitable for printing small text on packaging film
For the coding of dates and prices
In packaging processes with high production speeds
Printing storage life information, logos, brand marks and company marks, recycling logo and the EG symbol
Barcodes

The Kortho Hotprinter M80:

Kortho offers various accessories whereby the quickly exchangeable text holder can be flexibly arranged. With these accessories – such as characters, text blocks, adjustable date stamps, numbering machines and printing plates – there are many stamp combinations possible. Kortho also has its own design department and engraving organisation. Simple printing plates, but also extensive composite text holders can be produced for customers from their own specifications.

Specificaties

Max. print area (in mm)
50 x 80

Max. coding speed
300/min (1 row, 3 mm)
250/min (full area print)

Stamp pressure at 6 bar (N)
1,700

Max. Hotprint foil length (in mm)
305

Stamp temperature (°C)
0 - 240

End of Hotprint alarm
Standard

Power supply voltage
230VAC ± 10% 50-60 Hz
optionally 115VAC ± 10% 50-60 Hz

Power connection (Watt)
1 x 250

 Operating pressure (in bar)
5 – 8

Air usage (in litres per operation)
0.62 at 6 bar

Sound level (in dB)
74

Main dimensions (in mm) at max. Hotprint foil transport incl. platen (with standard bracket).
W 385, D 211, H 313
Inner bracket height (minimum) 200

Total weight incl. counterpressure plate (kg)
8,5

Operating system
Kortho Hotprint Control Box D-series

Hotprint foil norm
Non-toxic Hotprint foil

Industrial norms
CE-approved

Because of the continuos innovation of our products it is possible that changes can be made without notice.
