• More toroids per hour - Rapid cycle time of better than a turn a second in many cases.
• Auto rotation of toroidal coil with each stroke - Eliminates tiresome manual turning of core for each turn.
• Safety first - Exclusive TILT-UP HEAD greatly reduces chance of painful and costly hand injury from up-coming wire hook.
• Wide range of core and wire sizes - Cores to 2 1/2 O.D. and wires to #12 AWG.
• Quick set-ups - Changed in a few minutes for different size cores.
• Quit operation - Less noise means more coils with less operator fatigue.

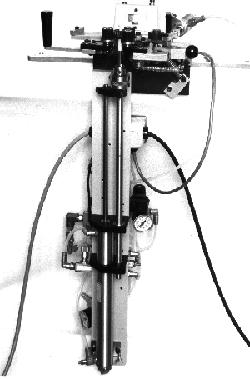

The HUSTLER is a new concept in pull winder technique. Its advanced design with TILT-UP HEAD for safety, along with adjustable automatic core rotation, makes it an excellent production machine.

All air cylinders and valves have their own self contained lubrication system for long life.

New set-ups are easily and quickly made with all adjustments on top.

• Rugged construction - All parts over-designed for a long, trouble free life.
• Coil to 2 1/2" O.D. and as small as 1/4" O.D.
• Wires to #12 AWG
• Quit operation - Cushioned main air cylinders cuts noise to a minimum. Muffled air exhaust ports.
• Two driven core rotators - Positive core drive. On the third, the pressure idler roller is ball bearing mounted.
• Adjustable stepping of core rotators simply adjusted for a wide range of wire sizes and spacing of turns.
• Left or right core indexing - Instantly changed by lever. Perfect for common mode toroids.
• Dual air pressure system - Allows strong down pull on wire, but lets upward return stroke be at a much lower pressure for safety reasons.
• Electronic solenoid air valves - Permit a simpler electric foot switch and a more reliable electric turns counter - plus the ability to index the core without adding counts. Valuable for separating windings
• Many sizes of standard core rotators available from stock.
• Many sizes of standard wire pullers available, made from delrin, prevent scuffing or worse still, stripping of insulation.
• Simple bench mounting - By clamping on front of table, or bolting for a more permanent mount.
• Reliability and safety are a buyers most important consideration. All parts are designed for ruggedness and long life, and the TILT-UP HEAD is a must for operator safety.
