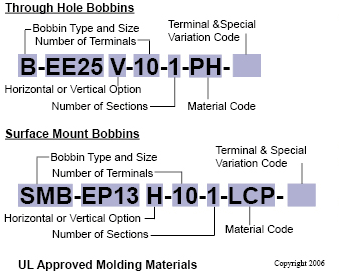

Part Numbering System HOME > About Bobbins > Part Numbering System







Plastic Type Mat'l Code Mfg * Trade Name UL Card No. UL Flameability System Class ** RoHS Compliant
Phenolic PH Sumitomo PM-9630 E41429 UL94-VO N (200°C) Yes
Phenolic PH2 Sumitomo PM-9820 E41429 UL94-VO N (200°C) Yes
Phenolic PH3 Chang Chun T357 / T373J / T375J E59481 UL94-VO F (155°C) Yes
Phenolic PH4 Hitachi CP-J-8800/8700 E59481 UL94-VO F (155°C) Yes
Dially Phthalate DAP Synress-Amico 5562 E48036 UL94-VO F (155°C) Yes
Dially Phthalate DAP2 Cosmic D72 E64213 UL94-VO F (155°C) Yes
Dially Phthalate DAP3 Sumitomo 52-70-70 E123472 UL94-VO F (155°C) Yes
Glass Filled Nylon GFN DuPont FR50 E41938 UL94-VO F (155°C) Yes
Glass Filled Nylon GFN2 DuPont 70G33L E41938 UL94-HB F (155°C) Yes
Glass Filled Nylon GFN3 DuPont 132F/101L (Zytel) E41938 UL94-V2 B (130°C) Yes
Glass Filled Nylon GFN4 RTP RTP205FR E84658 UL94-VO F (155°C) Yes
Glass Filled Nylon GFN5 DSM Co. TE250F8 (Stanyl) E172082 UL94-VO B (130°C) Yes
Glass Filled Nylon GFN6 Nanya 6410G E130155 UL94-VO B (130°C) Yes
Glass Filled Nylon GFN7 Ginar Tech AN4720SN E154352 UL94-HB B (130°C) Yes
Polyethylene PET DuPont FR530 (Rynite) E41938 UL94-VO N (200°C) Yes
Poly Butylene PBT Chang Chun 4130 E59481 UL94-VO B (130°C) Yes
Poly Butylene PBT2 Nanya 1403G6 E130155 UL94-VO B (130°C) Yes
Liquid Crystal LCP Sumitomo E4008 E54705 UL94-VO F (155°C) Yes
Liquid Crystal LCP3 Nippon HM402 E91944 UL94-VO F (155°C) Yes


Notes:
*Not all products are available in all materials. Material lots are traceable to the plastic manufacturer. Re-Grind at or below manufacturer's recommendations. Material specifications available at www.lodestonepacific.com/plastic-materials.
**Insulation System Class Temperature is for use as mechanical support. Review specific insulation systems to determine if the material is suitable as a ground insulation or as mechanical support at a higher temperature class.
